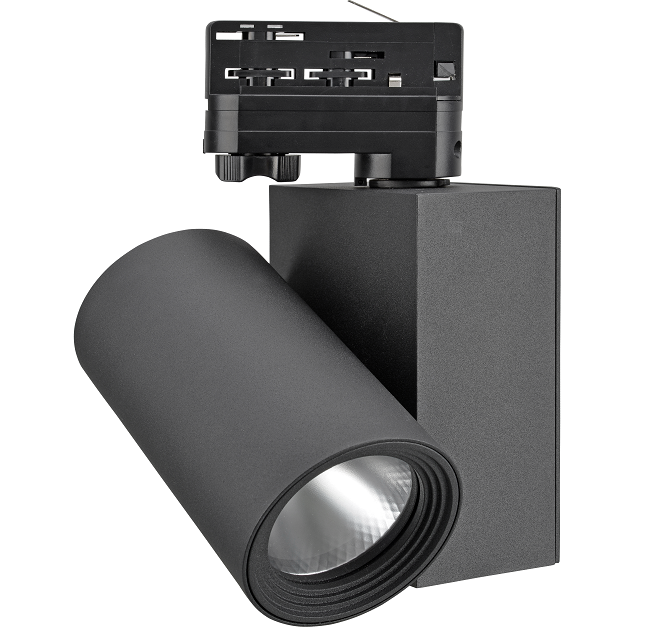

Track light design-High efficiency LED track light
Technical Specs
Product code
BLT202T-25



LED & Optics
LED brand & model Luminus CXM-14
CCT 2700K/3000K/4000K
CRI Ra>90
Voltage (VF) 36V
Beam angle 15° / 24° / 36°






Electrical

Parameter

System Power 25W
Driver brand & model Tridonic LC 28/700/40 fixC R ADV
Location of driver Remote in driver box
Input voltage AC220-240V,  50/60Hz
Output voltage 21-40V
Output current 700mA
Dimming method Triac / DALI / 0-10V
Power factor 0.9
Photometry Luminous flux in 3000K 2300lm





Luminaire

Structure

Adaptor 1 circuit / 3 circuit
Material Aluminum
Color Sandblasted white/ sandblasted black
IP rate IP20
Packing  20 pcs/carton
Carton size 54x39x55cm
Net weight 0.92kg/pc
Gross weight 23.5kg/ctn






Track light design-High efficiency LED track light

BLED's Track light design

*Available for DALI dimming
* 2 sizes of different lumen for various applications.

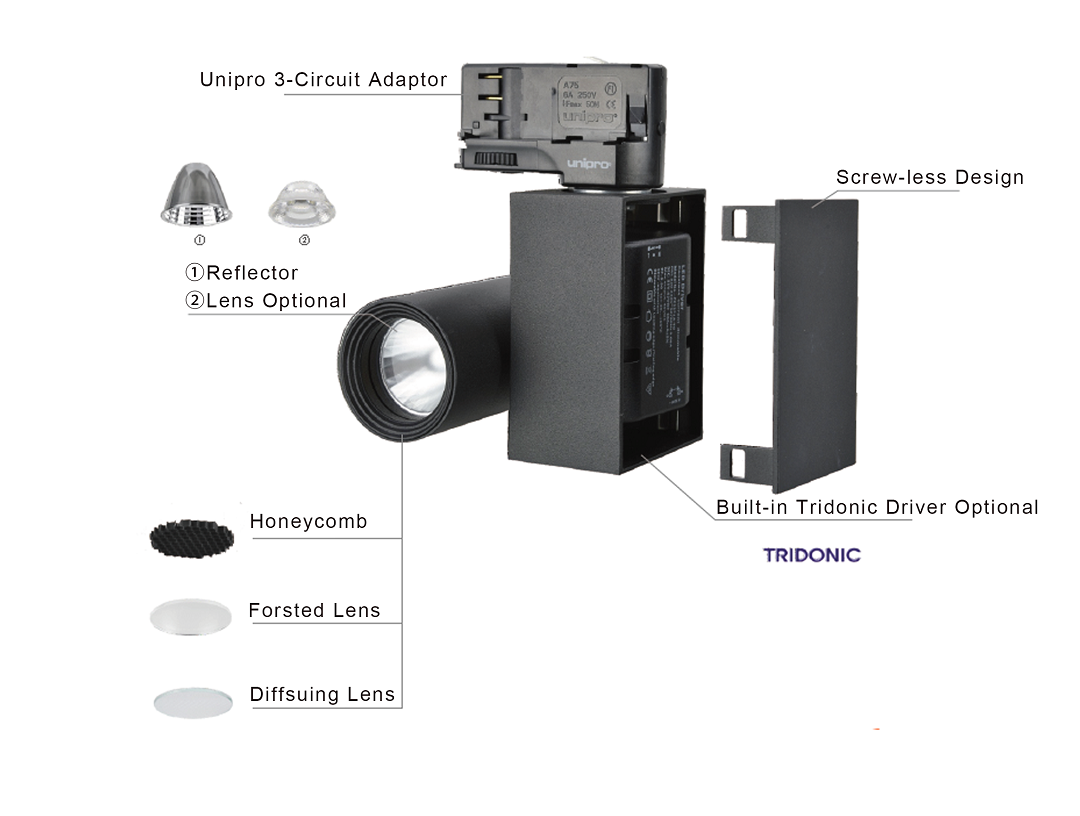

* Using high quality adaptor of brand such as Global Unipro Powergear

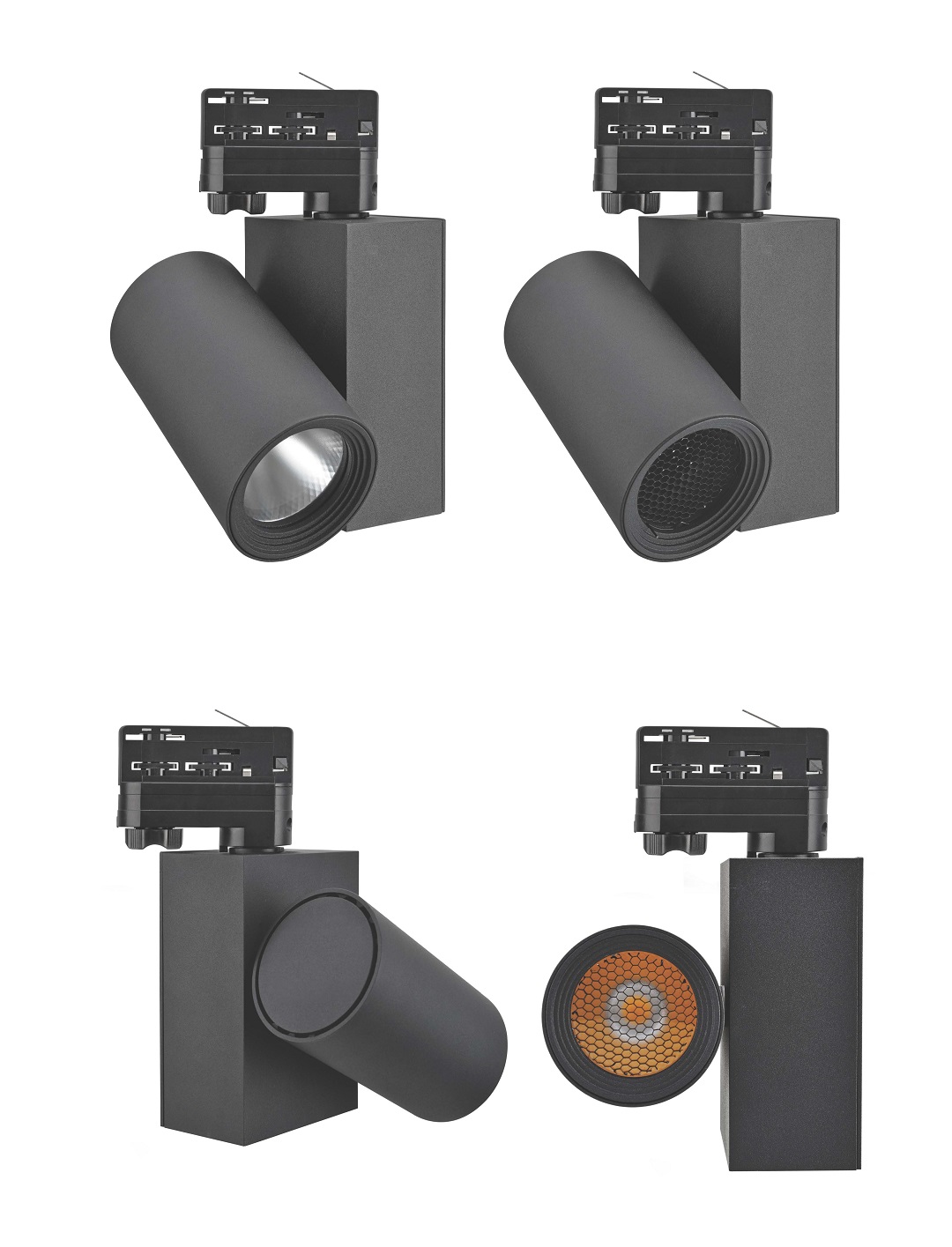

*Anti-glare design optional with honey comb and lens

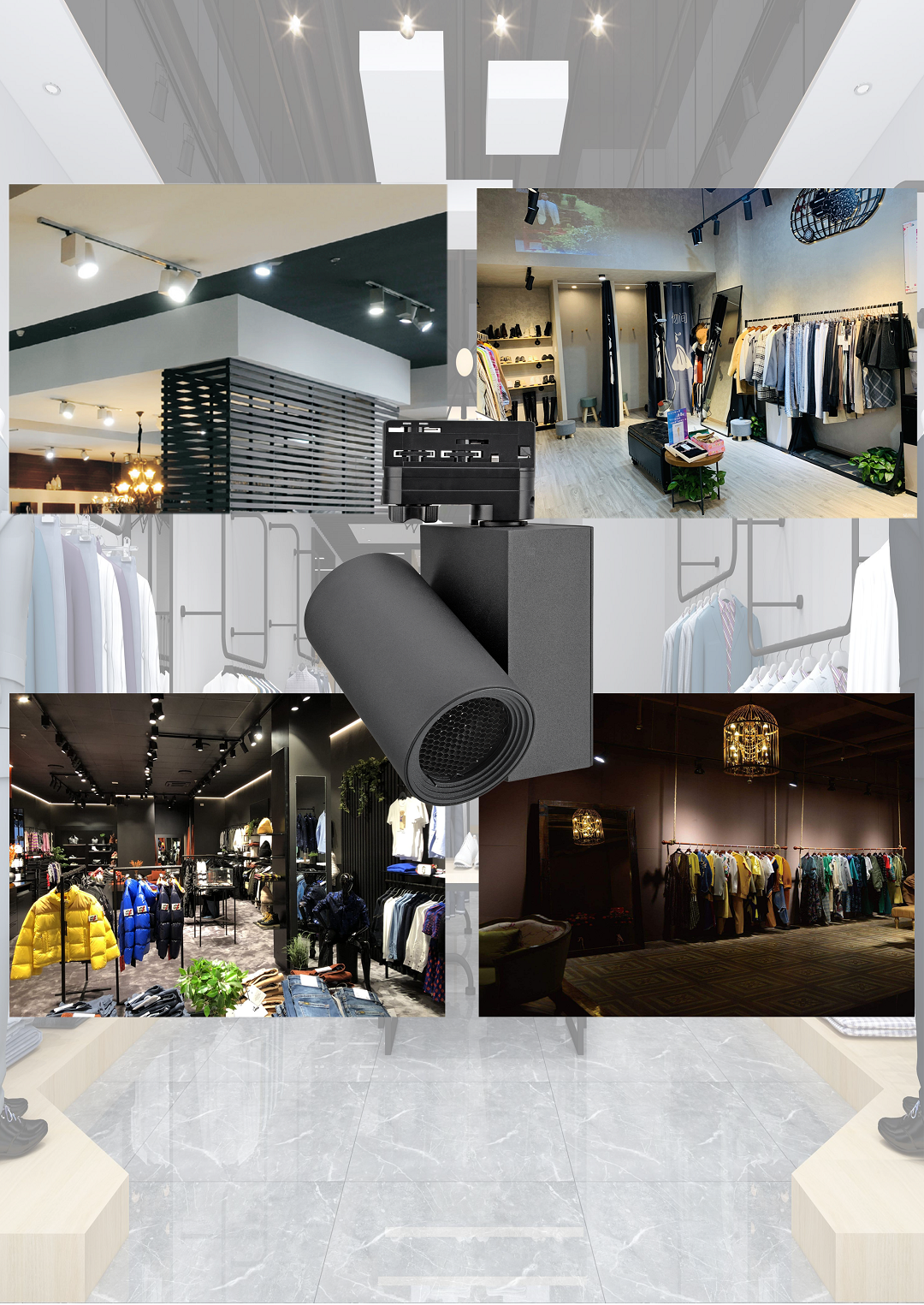

* Suitable for clothing shops boutique coffee shopsetc
