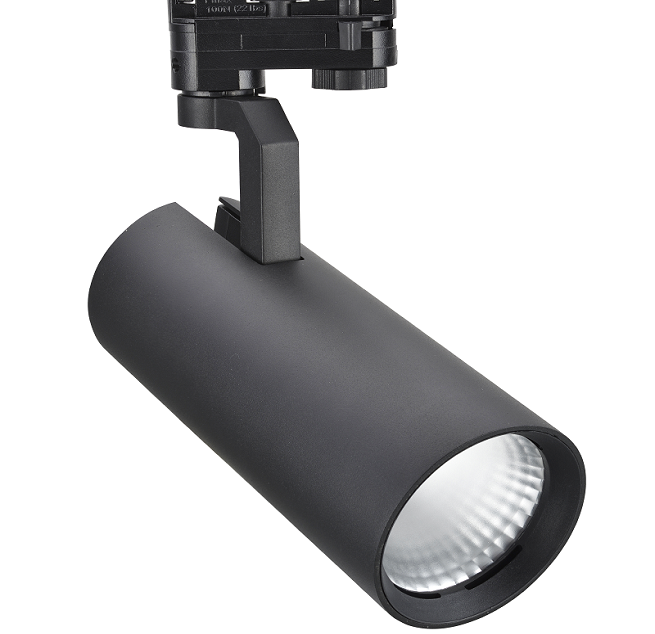

LED track light-25W 42W dimmable spot track light
Technical Specs
Product code BLT102T-25



LED & Optics
LED brand & model Luminus CXM-14
CCT 2700K/3000K/4000K
CRI Ra>90
Voltage (VF) 36V
Beam angle 15° / 24° / 40°






Electrical

Parameter

System Power 25W
Driver brand & model Tridonic / Global / Powergear
Location of driver Buit-in
Input voltage AC220-240V,  50/60Hz
Output voltage 21-40V
Output current 700mA
Dimming method Triac / DALI / 0-10V
Power factor 0.9
Photometry Luminous flux in 3000K 2589lm






Luminaire

Structure

Adaptor 3 circuit
Material Aluminum
Color Sandblasted white/ black
IP rate IP20
Packing  12PCS/CTN
Carton size 52*52*35.5cm
Net weight 1kg
Gross weight 16.8kg









LED track light-25W 42W dimmable spot track light

LED Track light

* Cylinder shape of Nordic minimalist design

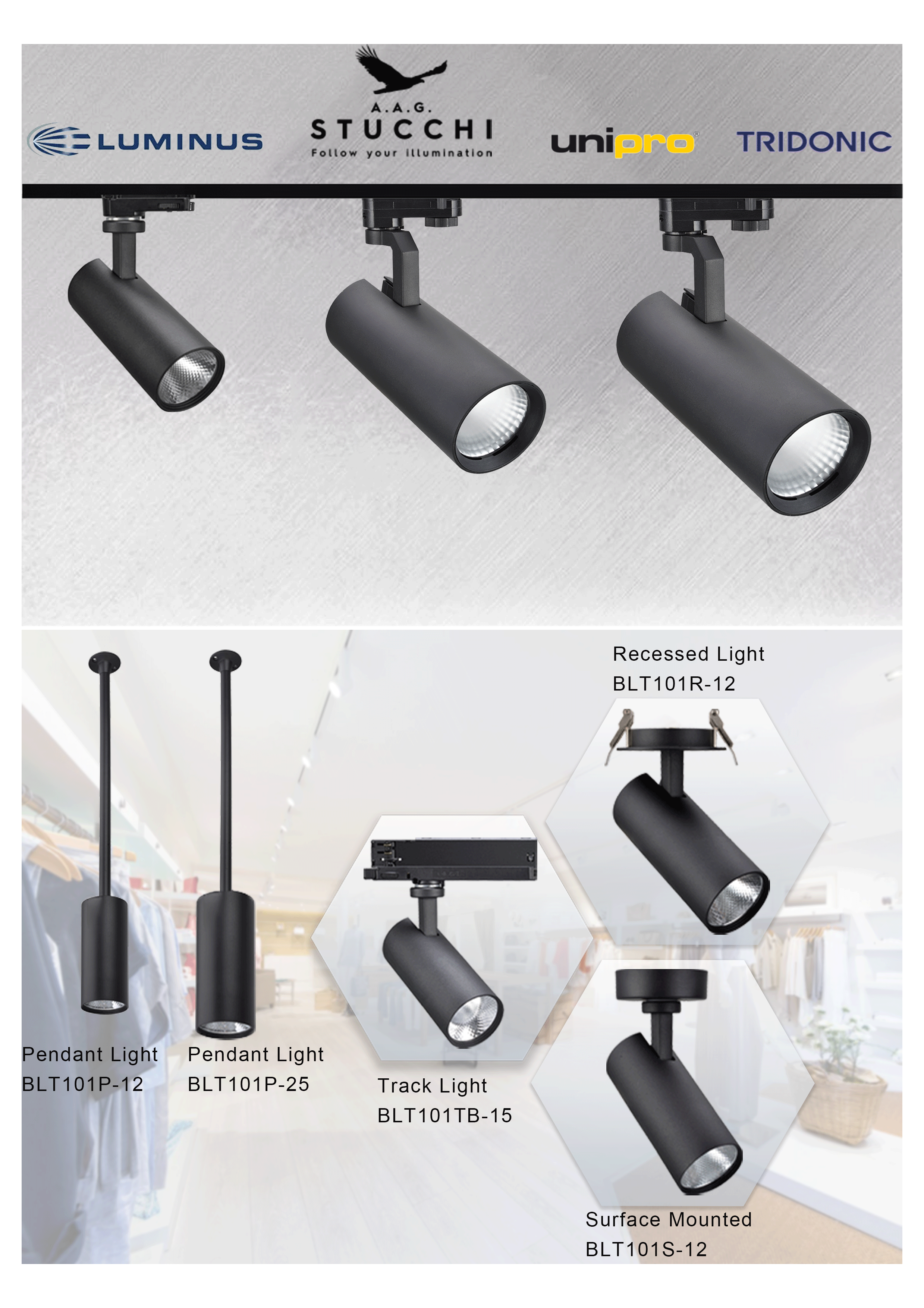

* Various ways of installation: Track mounted recessed pendant surface mounted.
* 3 sizes of different lumen for various applications.
* Suitable for clothing shops boutique coffee shopsetc
* Superior adaptor of GlobalUnipro or Powergear brand.
* 0-355°rotatable 0-90°adjustable
