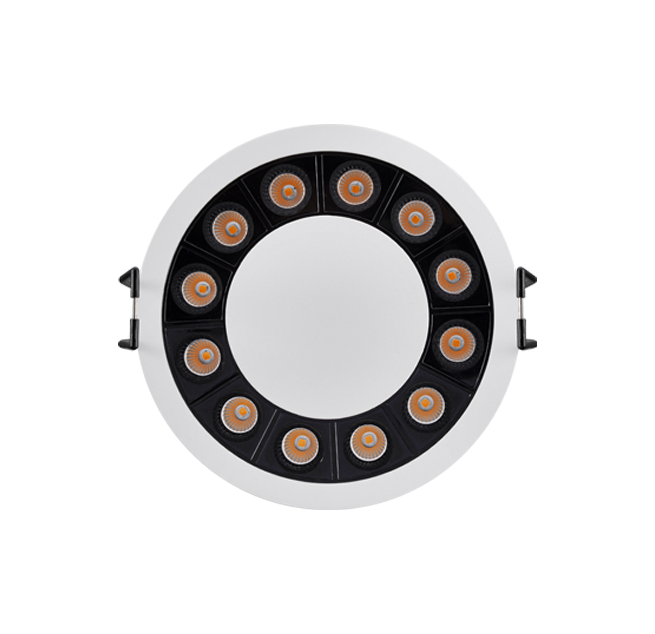

Recess downlights-Circle series downlight

Technical Specs

Product code	BLGR512
LED & Optics	Power	24W
	LED brand	Luminus
	CCT	2700K/3000K/4000K
	CRI	Ra>95
	Voltage (VF)	36V
	Beam angle	12°/24°//30°/48°
Electrical Parameter	Driver brand	Eaglerise / Osram
	Location of driver	Remote driver
	Input voltage	220-240V / 50/60Hz
	Output voltage	25-42V
	Output current	700mA
	Dimming method	Triac / DALI / 0-10V
	Power factor	0.9
Photometry	Luminous flux in 3000K CRI95	1500lm
Luminaire Structure	Mounting type	Recessed
	Illumination	Fixed
	Cut-out	φ120mm
	Material	Aluminum
	Color	White / black
	Dimension	φ134xH41mm
	Net weight	0.45KG
	IP rate	IP20/IP54

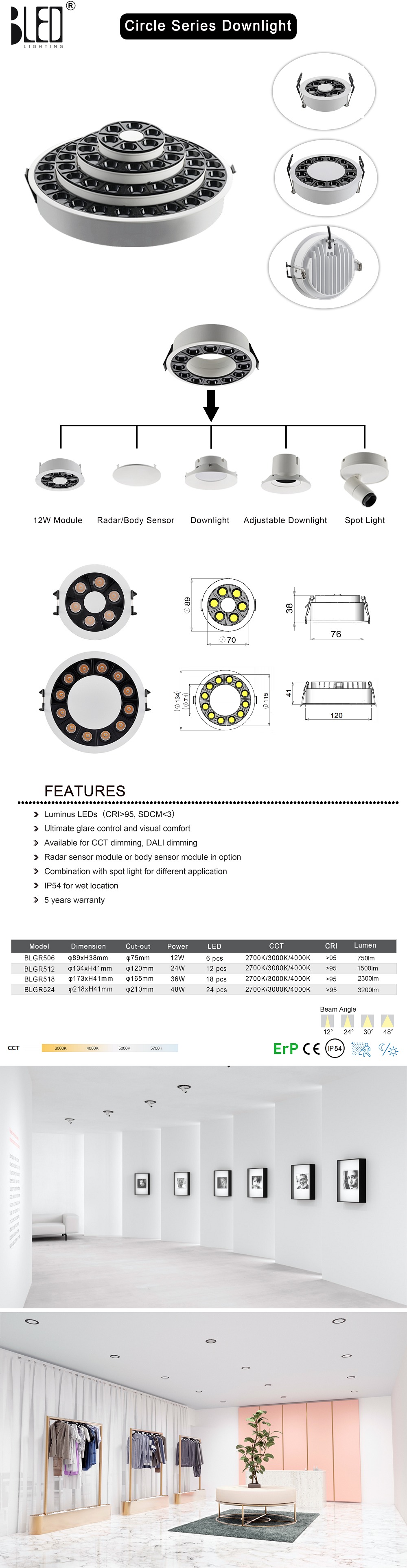

Recess downlights-Circle series downlight

Recess downlights

*LEDs of SDCM<3 produce high uniformity soft light.
*High color rendering index ( CRI>95).

*CCT dimming / DALI dimming in option.

* Ultra galre control with UGR<10.
* Available for radar sensor and body sensor.

* Combination with spot light for various application.
* IP54 for wet location.
* Available in 4 sizes.
