Recess downlight-high lumen UGR<12 for hotel
Technical Specs

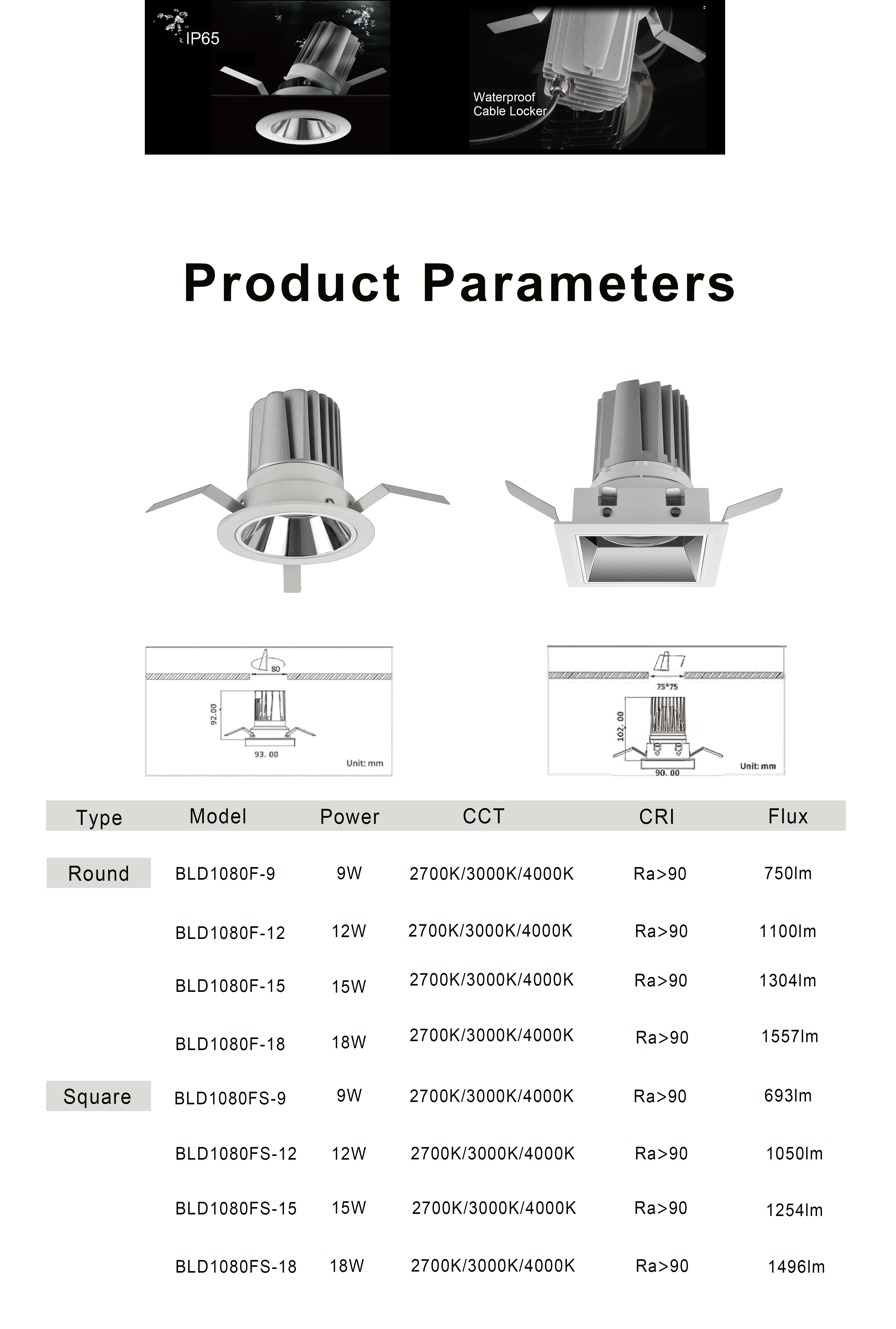

Product code BLD1080F




LED & Optics
Power 12W
LED brand & model Luminus CXM-7
CCT 2700K/3000K/4000K
CRI Ra>90
Voltage (VF) 36V
Beam angle 15°/24°/30°/38°/50°




Electrical
Parameter

Driver brand & model Tridonic / LC 10W 300mA fixC SR SNC
Installation of driver Remote driver
Input voltage AC220-240V, 50/60Hz
Output voltage 30-43V
Dimming method Triac / DALI / 0-10V
Power factor 0.85
Photometry Luminous flux in 3000K 1000lm







Luminaire
structure
Mounting type Recessed
Illumination Fixed
Cut-out φ80mm
Material Aluminum
Color White / black
IP rate IP65
Packing 12PCS/CTN
Carton size 49*35*31mm
Net weight 0.3KG
Gross weight 6.0KG

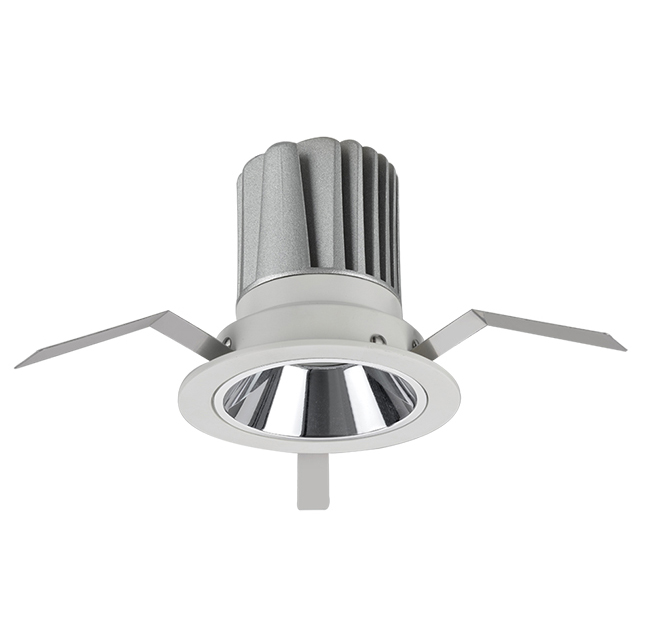

Recess downlight-high lumen UGR<12 for hotel

Recess downlight

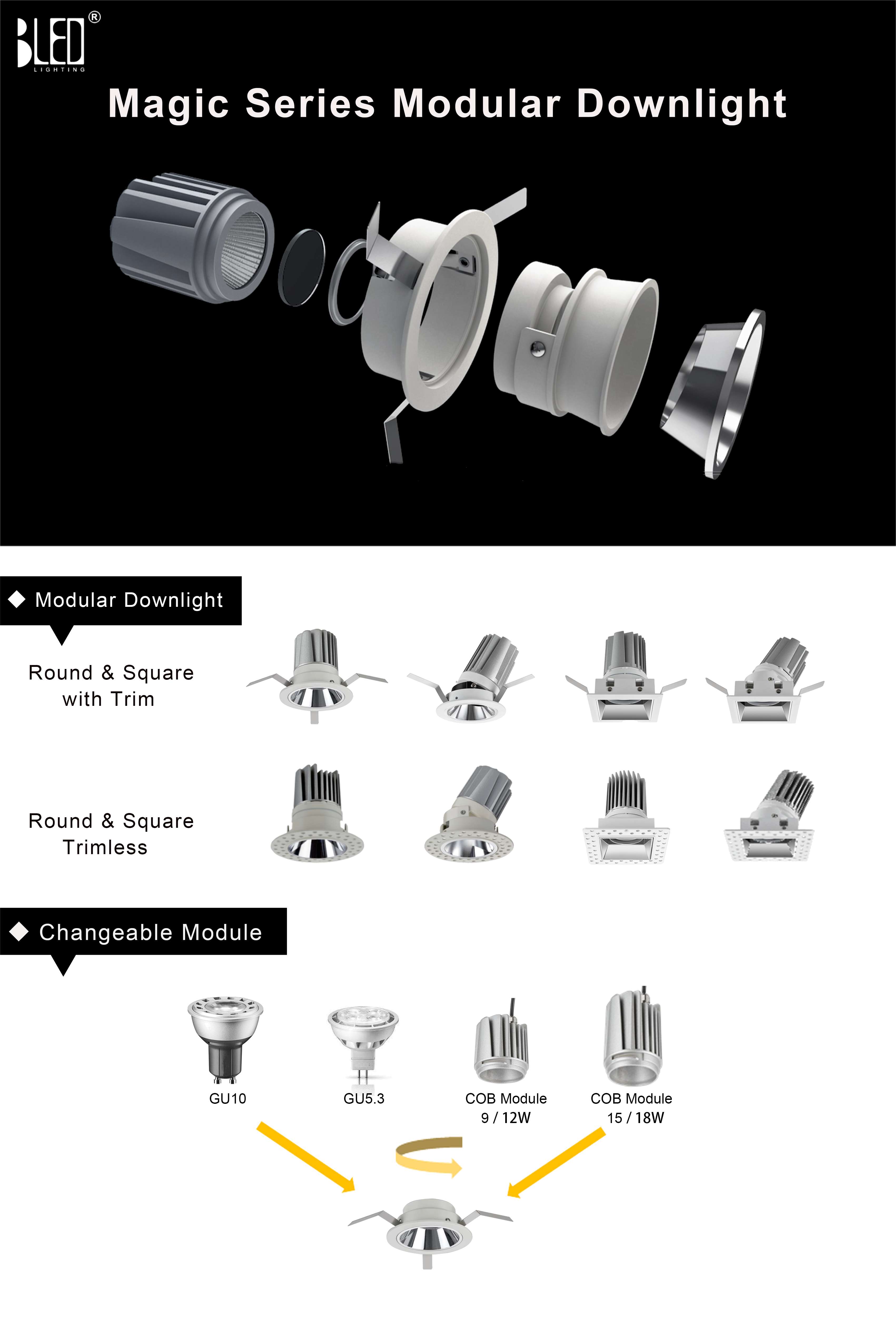

*  Modular system easy to change the accessories

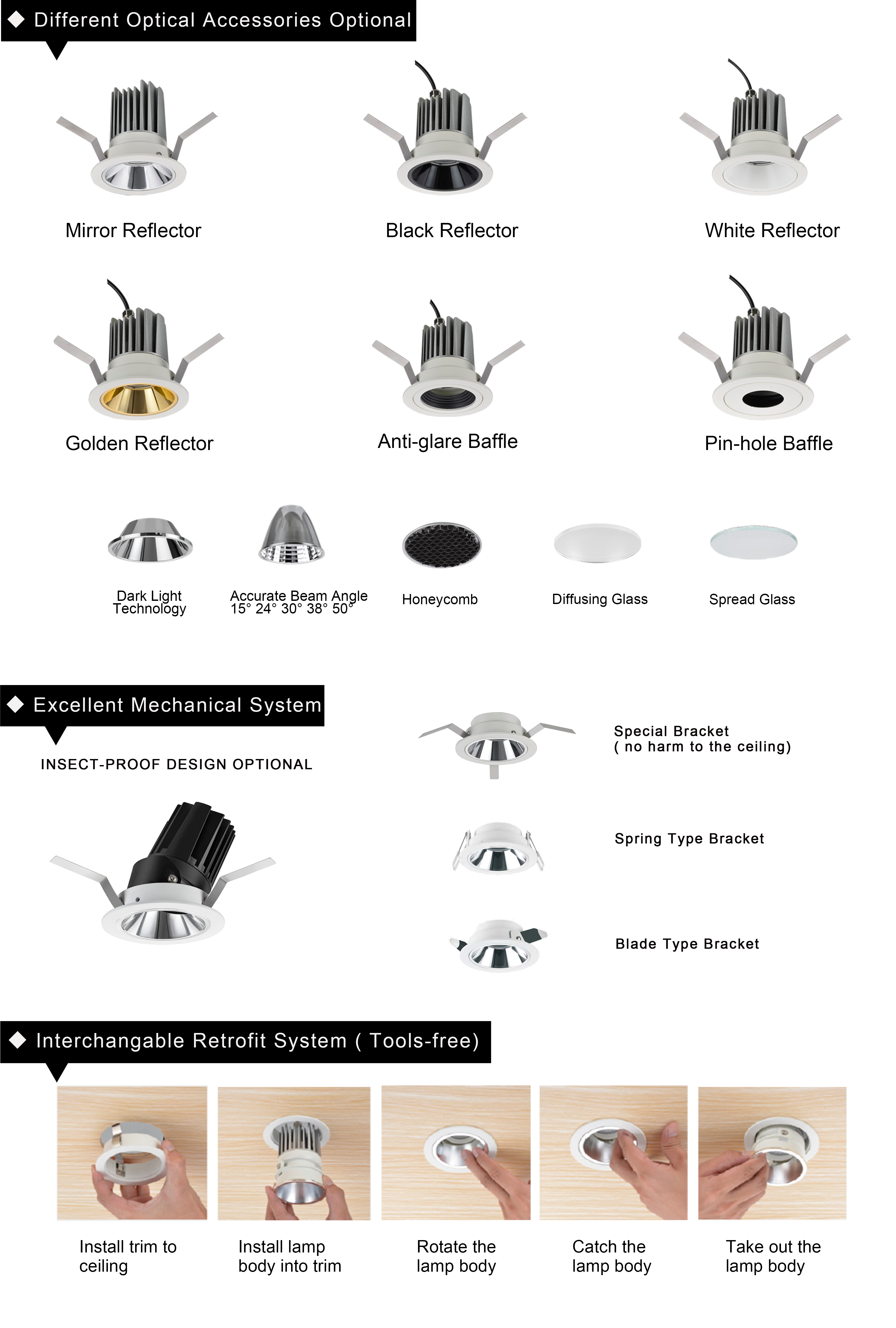

*  Ultimate anti-glare with various reflectors UGR<12
*  IP65 waterproof
*  High lumen Luminus chipsets 9watt~18watt
*  Round and Square trim fixed and adjustable fittings
*  Available for trimless installation.
*  Suitable for hotel store apartment washroom aisle etc.
