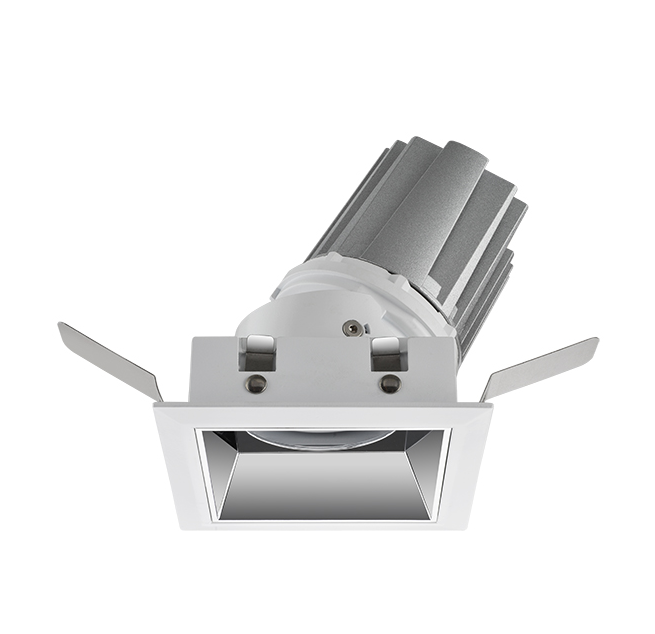

| Produce code | BLD1080AS | |
|
LED & Optics |
Power | 12W |
| LED brand & model | Luminus CXM-7 | |
| CCT | 2700K/3000K/4000K | |
| CRI | Ra>90 | |
| Voltage (VF) | 36V | |
| Beam angle | 15°/24°/30°/38°/50° | |
|
|
Driver brand & model | Tridonic / LC 10W 300mA fixC SR SNC |
| Installation of driver | Remote driver | |
| Input voltage | AC220-240V, 50/60Hz | |
| Output voltage | 30-43V | |
| Dimming method | Triac / DALI / 0-10V | |
| Power factor | 0.85 | |
| Photometry | Luminous flux in 3000K | 835lm |
|
Luminaire Structure |
Mounting type | Recessed |
| Illumination | Adjustable | |
| Cut-out | 75*75mm | |
| Material | Aluminum | |
| Color | White / black | |
| IP rate | IP65 | |
| Packing | 12PCS/CTN | |
| Carton size | 49*35*31mm | |
| Net weight | 0.3KG | |
| Gross weight | 6.0KG | |
