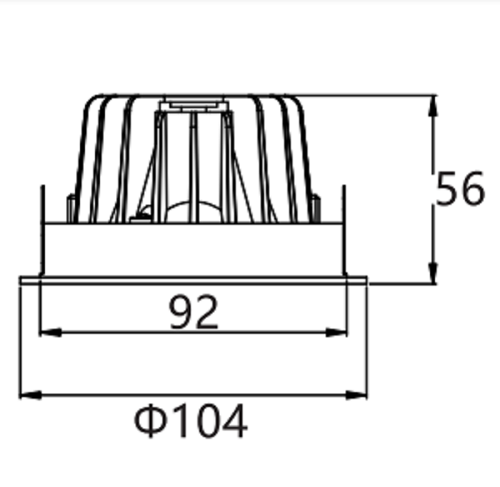

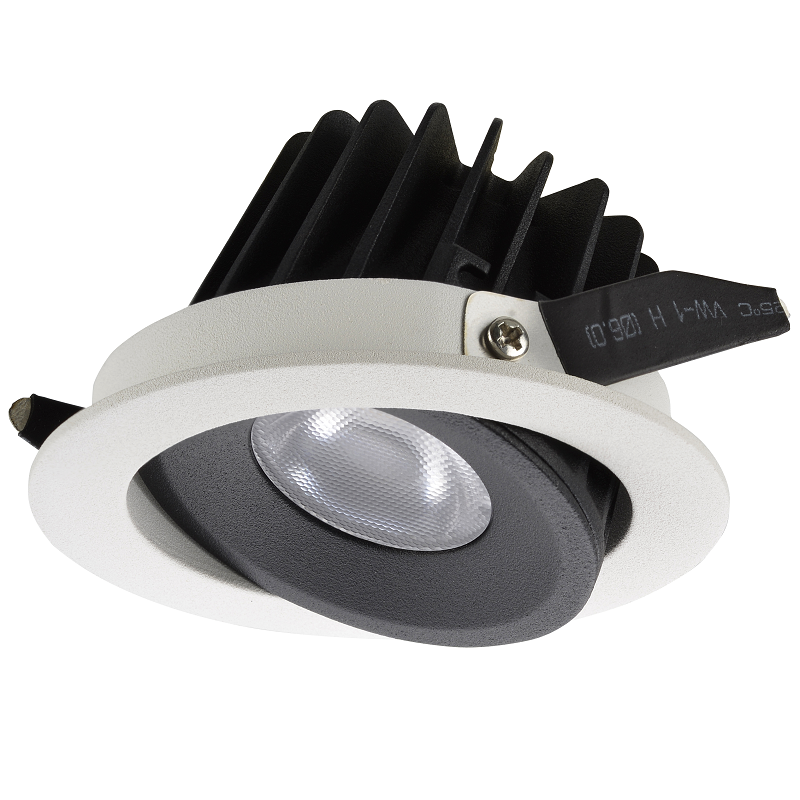

Adjustable spot light φ104mm dim to warm
Technical Specs
Product code number BLD3095A-12




LED & Optics		 Power 12W
LED brand & model Luminus CXM-7
CCT 2700K/3000K/4000K
CRI Ra>90
Voltage (VF) 36V
Beam angle 15°/24°/36°/60°




Electrical
Parameter

 Driver brand & model Tridonic / LC 10W 300mA fixC SR SNC
Installation of driver Remote driver
Input voltage AC220-240V, 50/60Hz
Output voltage 30-43V
Dimming method Triac / DALI / 0-10V
Power factor 0.85
Photometry Luminous flux in 3000K 895lm






Luminaire
Structure		 Mounting type Recessed
Illumination Adjustable
Cut-out φ95mm
Material Aluminum
Color White / black
IP rate IP54
Packing 32PCS/CTN
Carton size 48*24.5*38.5mm
Net weight 0.38KG
Gross weight 13.66KG

    • Adjustable spot light φ104mm dim to warm
    *  Low-depth recessed for short ceiling
    *  Unique design of anti-glare lens
    *  Available for dim to warm
    *  Fixed and adjustable fitting available with 4 sizes
    *  Good cooling system with superior aluminum heat sink.
    *  IP 54 for wet location
    *  Spring and blade bracket optional
