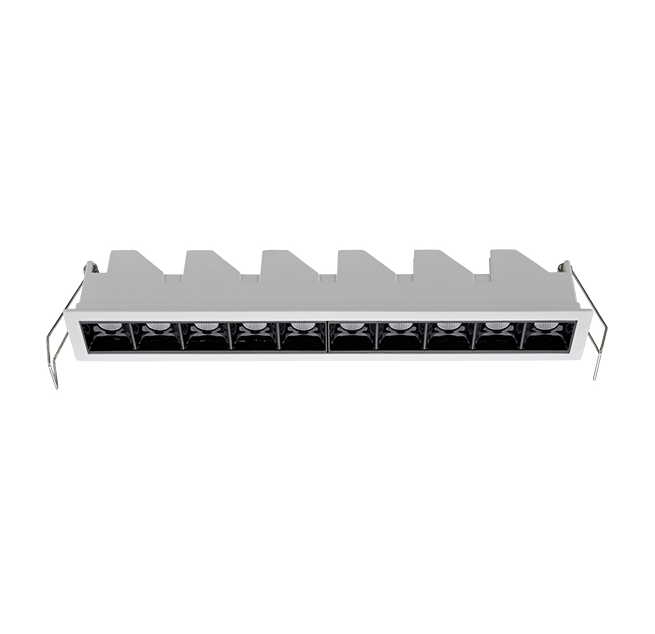

| Product code |
BLG110-20
|
|
|
LED & Optics |
Power | 10*2W |
| LED brand | Luminus | |
| CCT | 2700K/3000K/4000K | |
| CRI | Ra>95 | |
| Voltage (VF) | 10*3V | |
| Beam angle | 12°/34°/48° | |
|
|
Driver brand | Eaglerise / Osram |
| Location of driver | Remote driver | |
| Input voltage | 220-240V / 50/60Hz | |
| Output voltage | 25-34V | |
| Output current | 700mA | |
| Dimming method | Triac / DALI / 0-10V | |
| Power factor | 0.9 | |
| Photometry | Luminous flux in 3000K CRI95 | 1390lm |
|
Luminaire Structure |
Mounting type | Recessed |
| Illumination | Fixed | |
| Cut-out | 275*38mm | |
| Dimension | 280*45*H50mm | |
| Color | White / black | |
| IP rate | IP20 | |
| Packing | 20PCS/CTN | |
| Carton size | 40*35.5*45mm | |
| Net weight | 0.57KG | |
| Gross weight | 13.6KG | |
