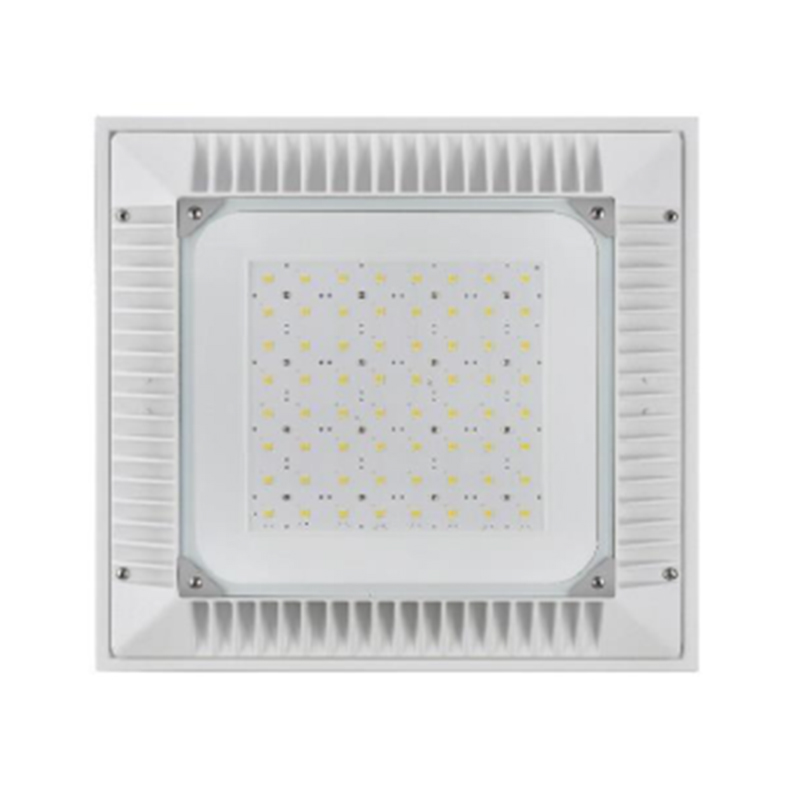

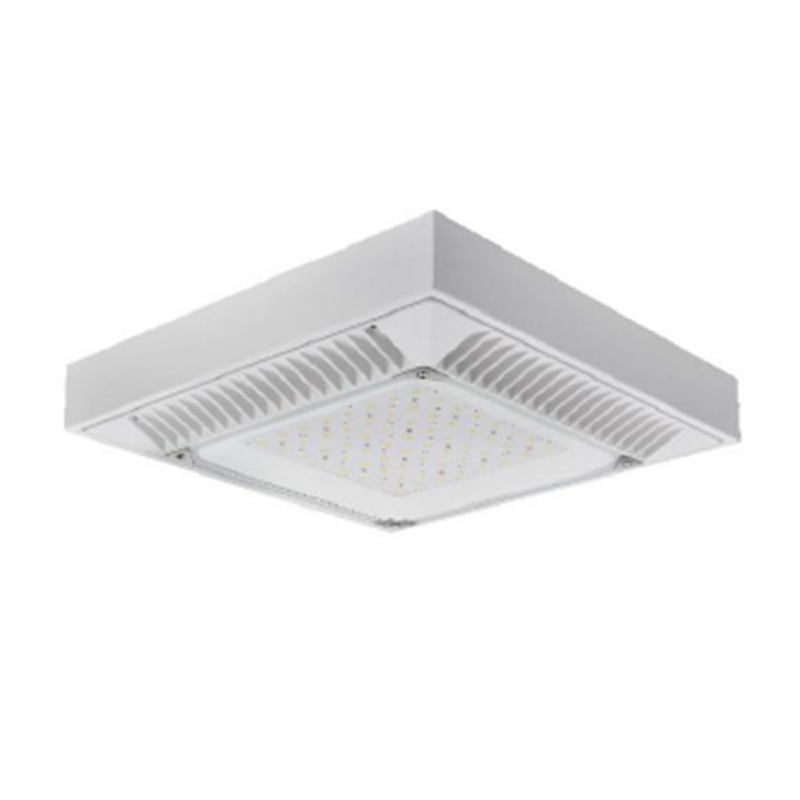

Outdoor LED Canopy high/low bay light

DESCRIPTION
The LUNA series surface mount LED Canopy Luminaire combines energy-efficiency, advanced optical control, and modern slim profile aesthetics todeliver enhanced performance to a range of surface-mount lightingapplications. Rugged die-cast heatsink as part of housing provides advancedthermal management for long life and weather-proof compartment towithstand challenging environments.

APPLICATIONS
Covered walkways, drive-thrus, semi-covered outdoor aisles, cold storagefacilities or walk-in cooler/freezer, corridors, building canopies, large stairwells.

SPECIFICATION FEATURES
Construction
Optical unit - IP67 rated, comes with high brightness LEDs, reflector, hightransparency tempered glass front cover, and optional optic lens modules.Heatsink - rugged, one-piece style, ultra-slim die cast aluminum alloy.Housing - powder coated steel housing with LED driver attached inside, oneconduit knockout and four mounting holes.Optiona Integral Microwave motion sensor

Optics
Dedicated optical cavities for the array of 4 individual LEDs to maximize theefficiency and control of the distribution out of each module. To enhance visualcomfort, an optional glare-reducing glass cover is utilized to maximize deliveredlumens while minimizing glare. Five symmetric optics and five asymmetric opticare specifically designed for efficiency and uniformity. Diversified CCTs and CRIsat option to meet almost all lighting needs.

Electrical
IP67 rated LED driver is enclosed in the steel housing at the backplate for betterheat conductivity, designed to manage thermals for longevity. 220-240V50/60Hz operation. Withstand 10kV of transient line surge. 20kV surgeprotection is optional. 90% lumen maintenance expected at 60,000 hours.Suitable for operation in -40°C to 50°C (-40°F to +122°F) Ta.

Finish
Housing is finished in worldwide first class polyester powder cost paint, 100 μmnominal thickness for superior protection against fade and wear, cracking orpeeling. Optional standard colors include white, grey, black, bronze, othercolors available upon request. RAL and color matches

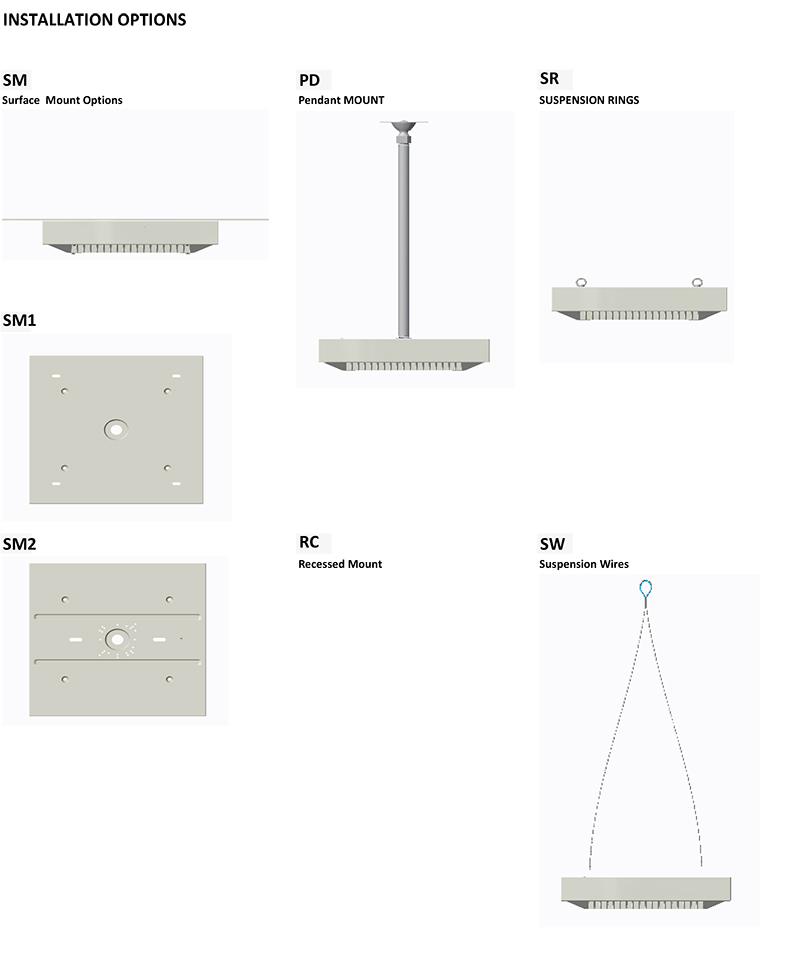

Mounting
Luminaire can be installed from below canopy, through four mounting holes forquick and easy installation.

WARRANTY
5-year Limited Warranty. See warranty documentation for more info.
