Outdoor Modular LED Canopy Bay LightHIGHLIGHTS

● Deriving from deep-rooted understanding of markets and application onoutdoor LED lighting luminaires for 10+ years;
● Combination of industry-leading key components and rich expertise aboutR & D, quality management;
● Patented, unique and low-profile, but pragmatic style;
● Outstanding cost performance, long life with low cost of ownership,reliability, and easy installation;
● Sufficient options in wattage, lumens, and lighting controls/interfaces.


Canopy, low bay/high bay applications e.g. warehouse, garage, manufacturingfacility, athletic facilities, airport waiting hall, hangar, exhibition center.


● Housing: rugged and light-weight aluminium alloy functioning as platformfor light bars and driver compartment, and lighting control interfaces (e.g.Zhaga sensor ready connector, NEMA receptacle).

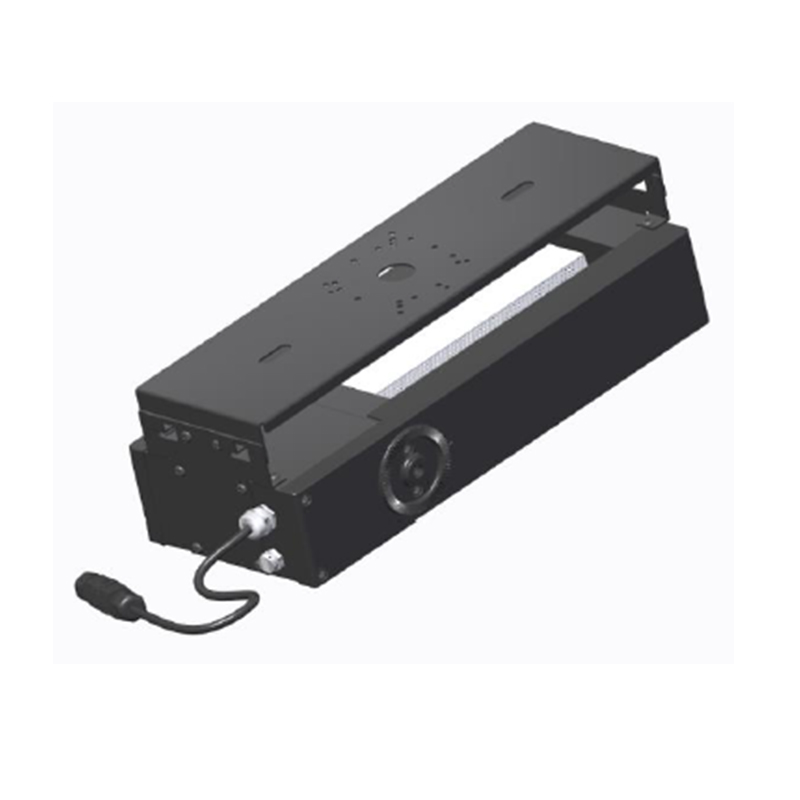

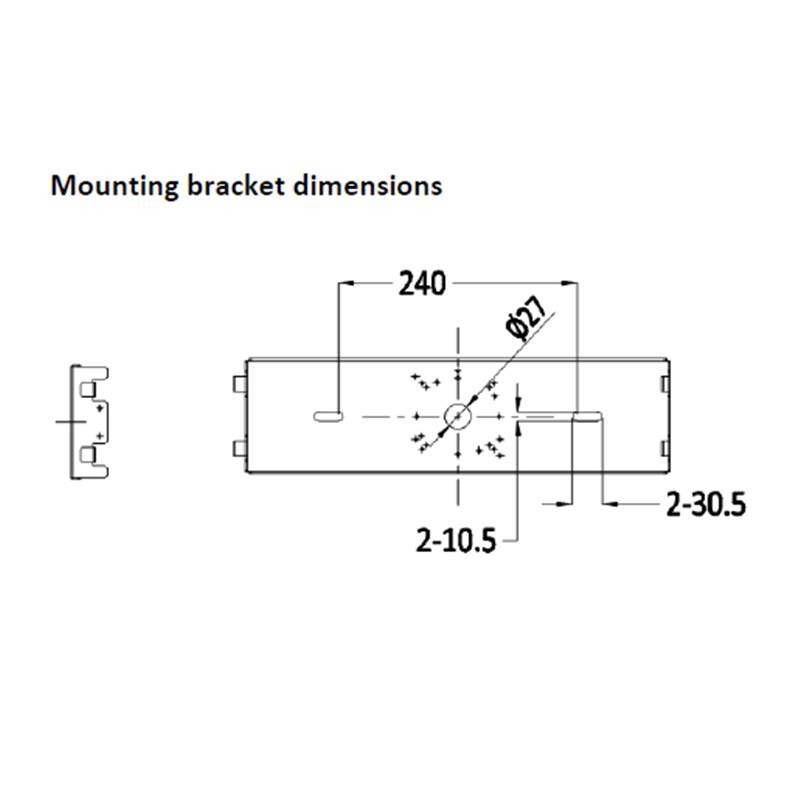

● Mounting bracket: powder coated steel.
● Light bars: extrusion aluminium heatsink, aluminium PCB with 18 LEDsmounted, UV resistant polycarbonate 18-in-1 optic lens cluster, microterminal block on PCB and connector for tool-less wiring. IP67 and IK10 rated.
● Hardware: 304 grade stainless steel nuts.

UV resistant polycarbonate optic lens cluster comes with dedicated opticalcavities for the array of 18 individual LEDs. Optic lenses for symmetric andasymmetric light distributions are specifically designed for efficiency anduniformity to meet almost all lighting needs. Diversified CCTs, CRIs, andwavelength are at option.

LED driver is enclosed in an aluminium driver compartment , designed tomanage thermals for longevity. 220-240V, 90-305V AC, 120-277V AC, or 347-480V AC, 50/60Hz operation.Withstand 10kV of transient line surge. 20kV surge protection is optional.Suitable for operation in -40°C to 50°C (-40°F to +122°F) Ta. Class II protectionclass is available upon request.

Housing is finished in world-class polyester powder coating to withstandchallenging environments, 100 μm nominal thickness for superior protectionagainst fade and wear, cracking or peeling. Optional standard colors includewhite, grey, black, bronze, other colors available upon request. RAL and colormatches

Technical Parameters
Rated Power 20W / 30W / 40W / 50W / 60W
No. of LEDs 1 x 18
Projected Life-span L90 B10:>100,000 hrs

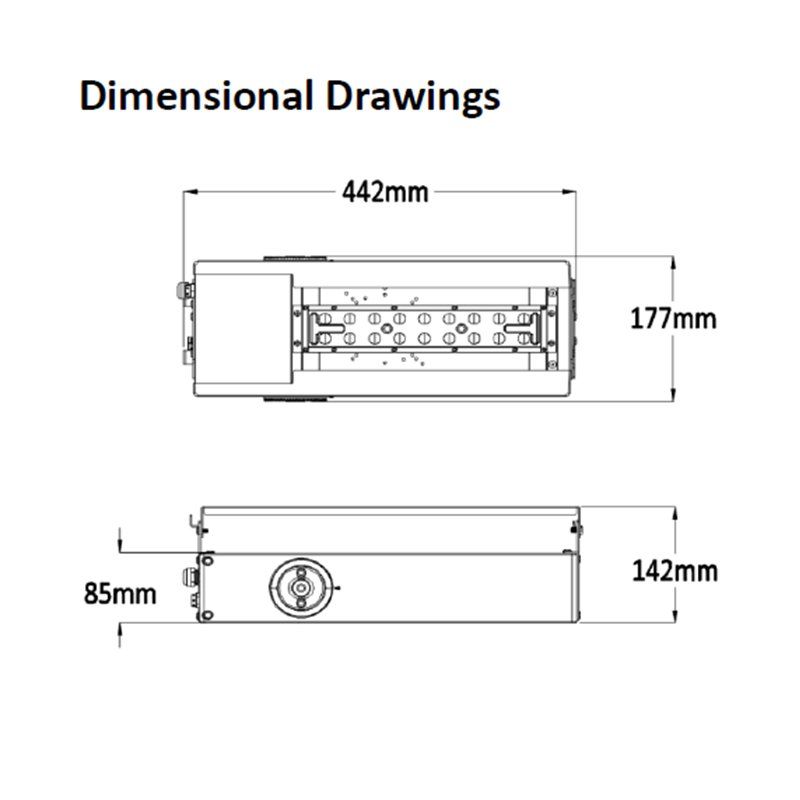

Dimensions L*W*H (mm) 442 * 177 * 142 (85)
Input Voltage & Frequency 90-305V AC 50/60Hz
Power Factor (PF) 0.97 (Min)
THD <20%
Surge Protection 10KV
Protection class IEC Class I
Ambient Temp. (Ta) -40 to +50℃
IP Rating IP67
Mech. Impact protection IK10
Housing and heatsink Aluminum alloy
Powder Coating Thickness 100μm
Mounting bracket, screws Steel with polyester powder coating, 304 grade stainless steel
Optic lens material Polycarbonate (PC)
Optic lens & Light Distribution UV resistant polycarbonate, discoloration resistant, more weather proof for unique lens design
Optional optics and photometry: 10°, 20°, 30°, 60°, 90°, 120°, 150°,IESNA Type I, II, III, IV, V.
