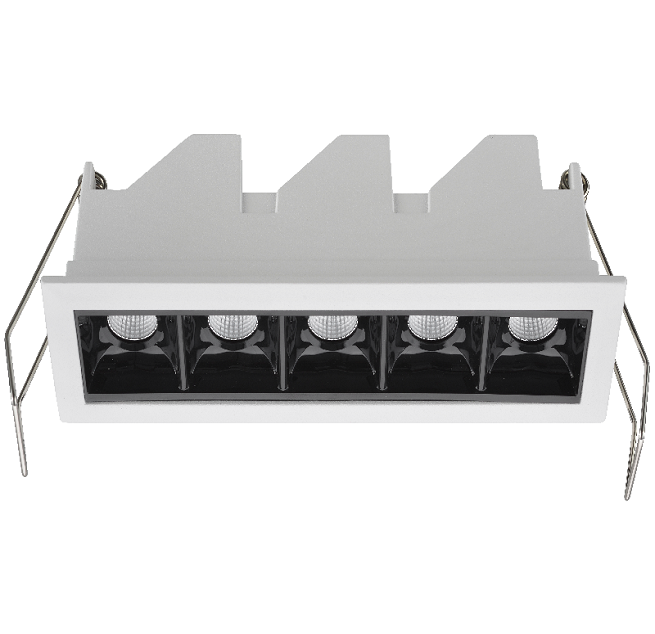

Linear light fixture-Fixture laser blade liner down light
Technical Specs
Product code BLG105-10




LED & Optics
Power 5*2W
LED brand Luminus
CCT 2700K/3000K/4000K
CRI Ra>95
Voltage (VF) 5*3V
Beam angle 12°/34°/48°





Electrical
Parameter

Driver brand  Eaglerise / Osram
Location of driver Remote driver
Input voltage 220-240V / 50/60Hz
Output voltage 12-18V
Output current 700mA
Dimming method Triac / DALI / 0-10V
Power factor 0.9
Photometry Luminous flux in 3000K CRI95 704lm






Luminaire
Structure
Mounting type Recessed
Illumination Fixed
Cut-out 141*38mm

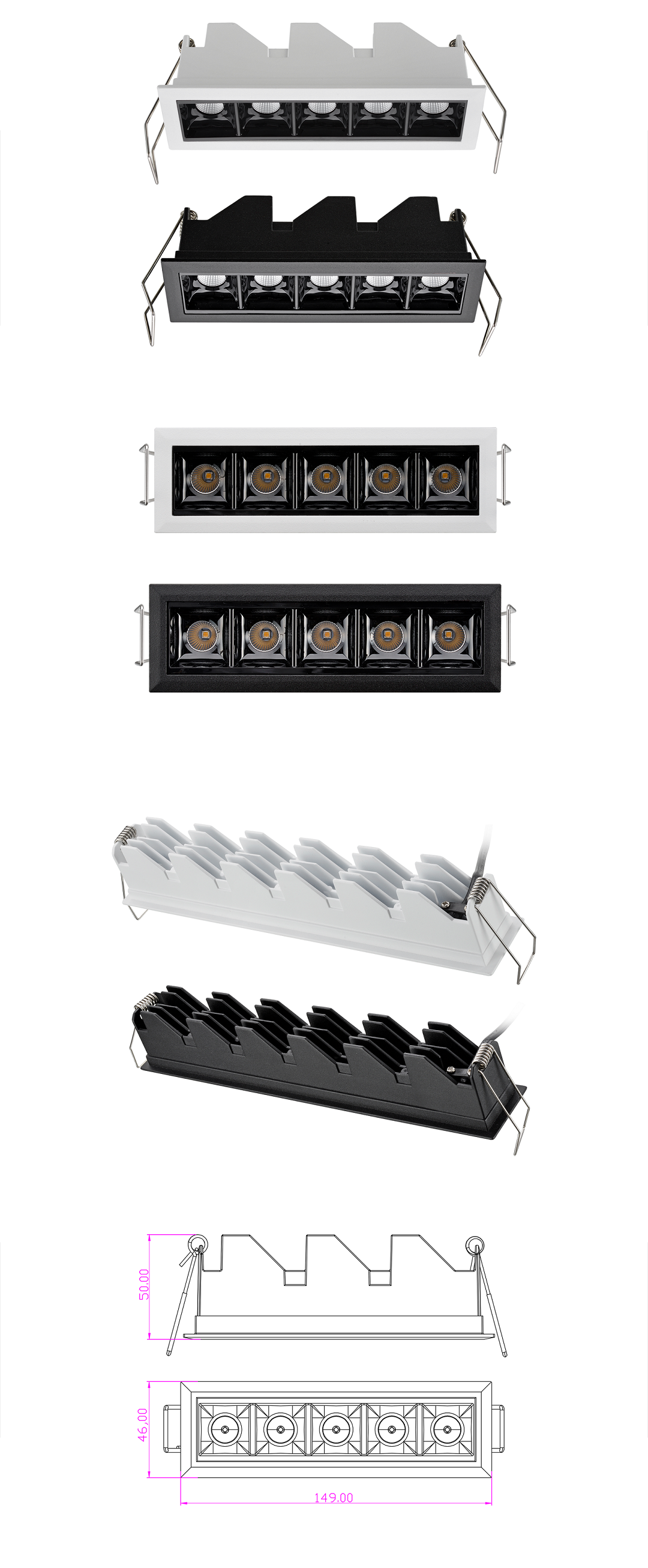

Dimension 149*46*H50mm
Color White / black
IP rate IP20
Packing 50PCS/CTN
Carton size 45*40*45mm
Net weight 0.4KG
Gross weight 21.5KG


Linear light fixture-Fixture laser blade liner down light

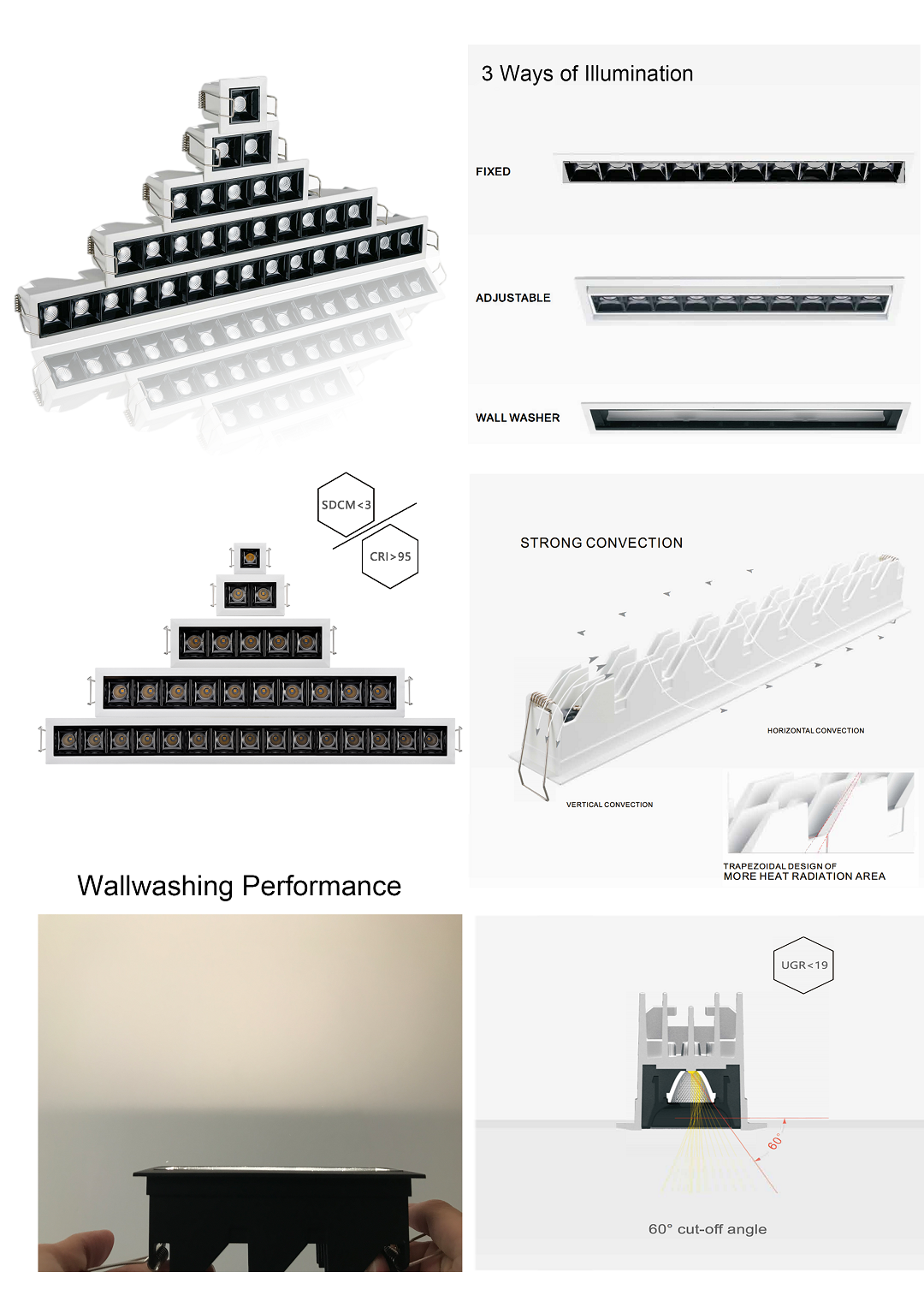

LED DOWNLIGHT

*  LEDs of SDCM<3 produce high uniformity soft light.
*  Anti-glare design with UGR<10.
*  High color rendering index (CRI>95)
*  Linear shape of various sizes meet different demand.
*  Special design heat sink with excellent cooling system.
*  Available for narrow beam / wide beam / wallwasher.
