wallwasher linear downlight laser blade
Technical Specs
Product code BLG305WW-16




LED & Optics
Power 8*2W
LED brand Luminus
CCT 2700K/3000K/4000K
CRI Ra>95
Voltage (VF) 8*3V
Beam angle Wall washing





Electrical
Parameter

Driver brand  Eaglerise / Osram
Location of driver Remote driver
Input voltage 220-240V / 50/60Hz
Output voltage 25-34V
Output current 700mA
Dimming method Triac / DALI / 0-10V
Power factor 0.9
Photometry Luminous flux in 3000K CRI95 700lm






Luminaire
Structure
Mounting type Recessed
Illumination Fixed

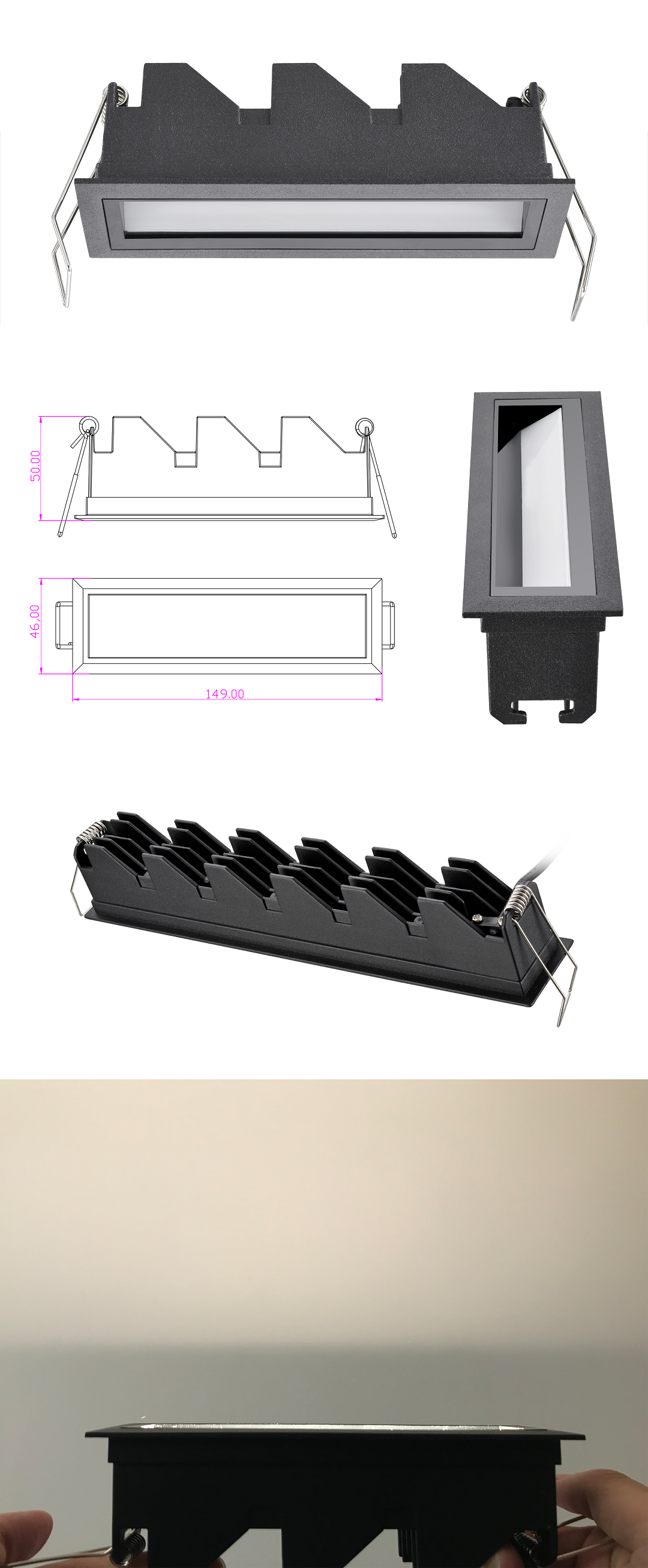

Cut-out 141*38mm
Dimension 49*46*H50mm
Color White / black
IP rate IP20
Packing 50PCS/CTN
Carton size 45*40*45mm
Net weight 0.32KG
Gross weight 17.5KG


wallwasher linear downlight laser blade

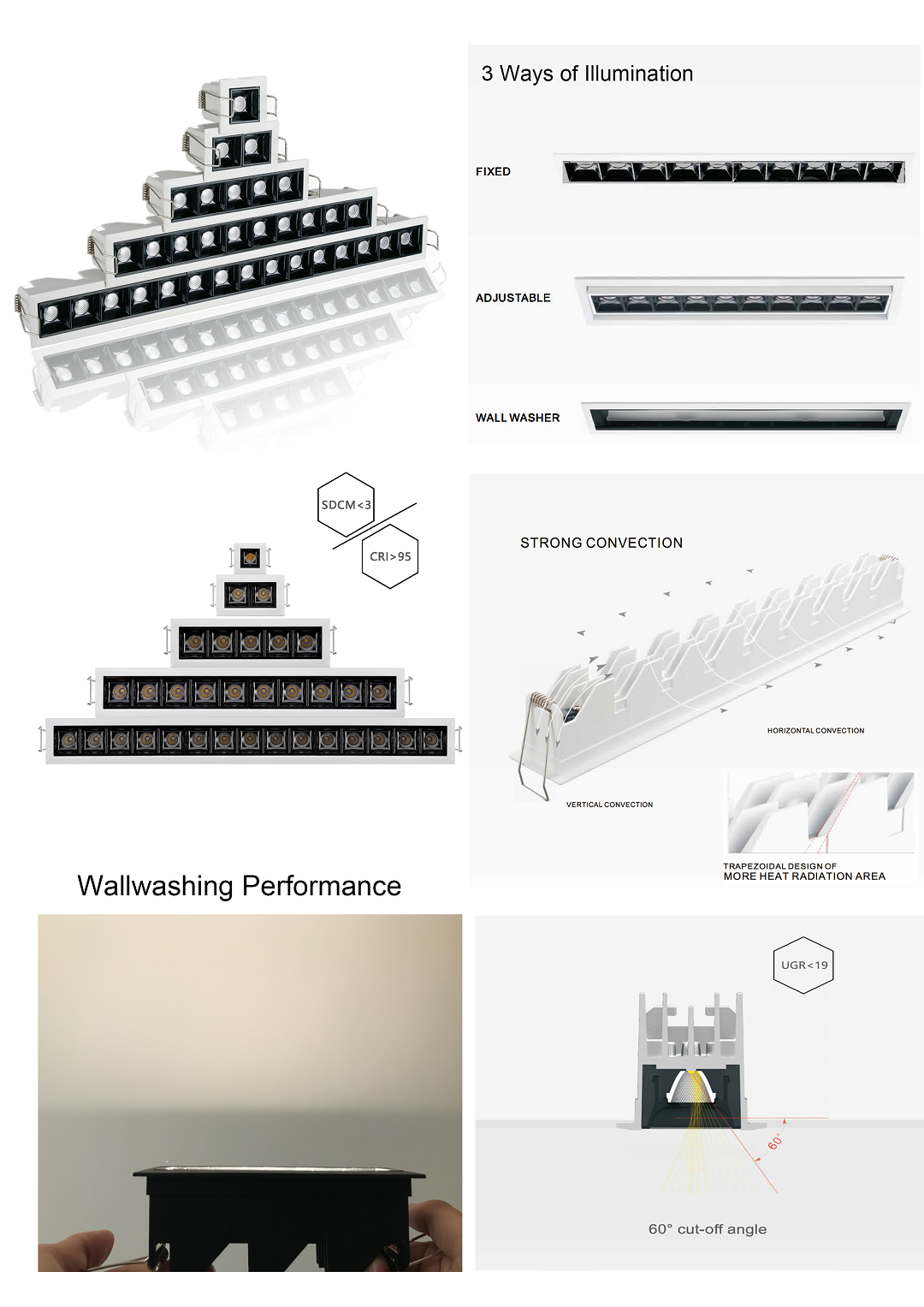

*  Excellent wallwashing effect.
*  LEDs of SDCM<3 produce high uniformity soft light.
*  Anti-glare design with UGR<10.
*  High color rendering index (CRI>95)
*  Linear shape of various sizes meet different demand.
*  Special design heat sink with excellent cooling system.
