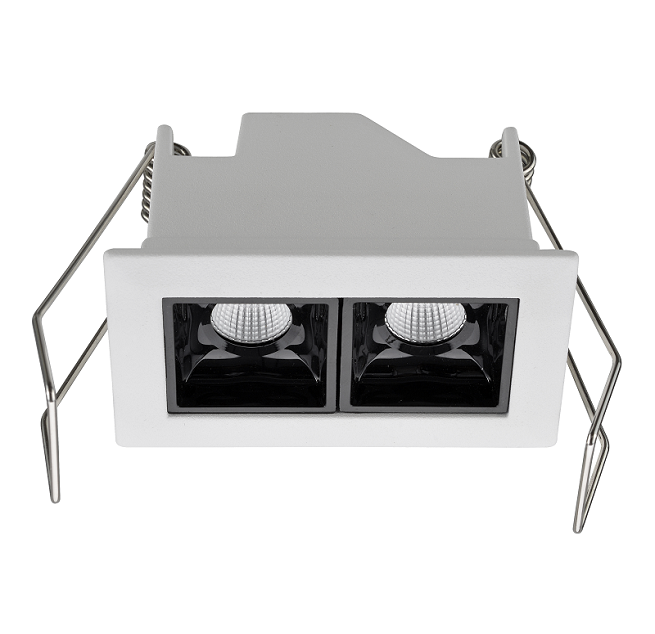

2-optic grille light Laser blade
Technical Specs
Product code BLG102-4




LED & Optics
Power 2*2W
LED brand Luminus
CCT 2700K/3000K/4000K
CRI Ra>95
Voltage (VF) 2*3V
Beam angle 12°/34°/48°





Electrical Parameter

Driver brand  Eaglerise
Location of driver Remote driver
Input voltage 220-240V / 50/60Hz
Output voltage 5-8V
Output current 700mA
Dimming method Triac / DALI / 0-10V
Power factor 0.9
Photometry Luminous flux in 3000K CRI95 304lm






Luminaire Structure
Mounting type Recessed
Illumination Fixed
Cut-out 67*38mm

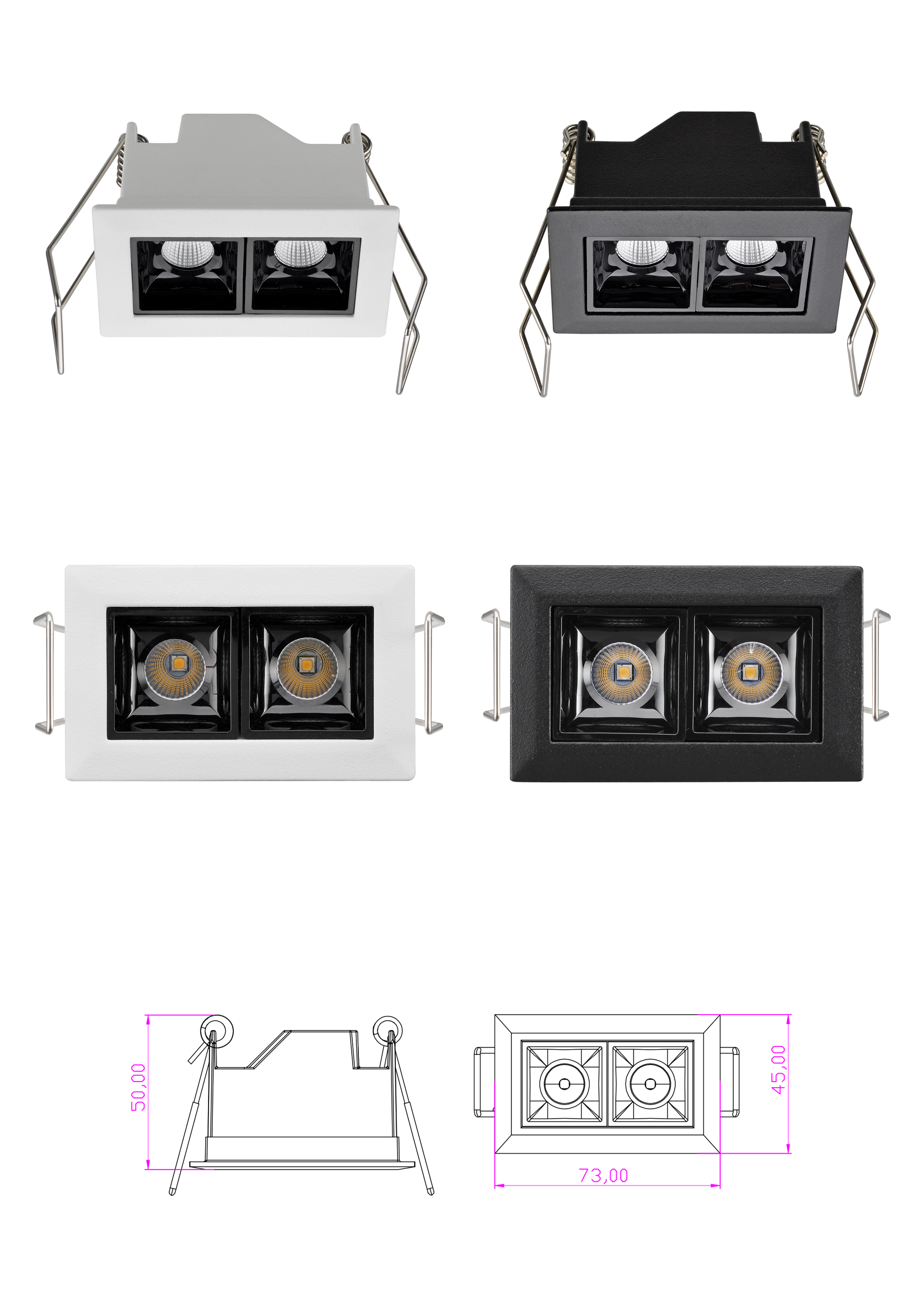

Dimension 73*45*H50mm
Color White / black
IP rate IP20
Packing 100PCS/CTN
Carton size 46.5*45*42.5mm
Net weight 0.18KG
Gross weight 22KG

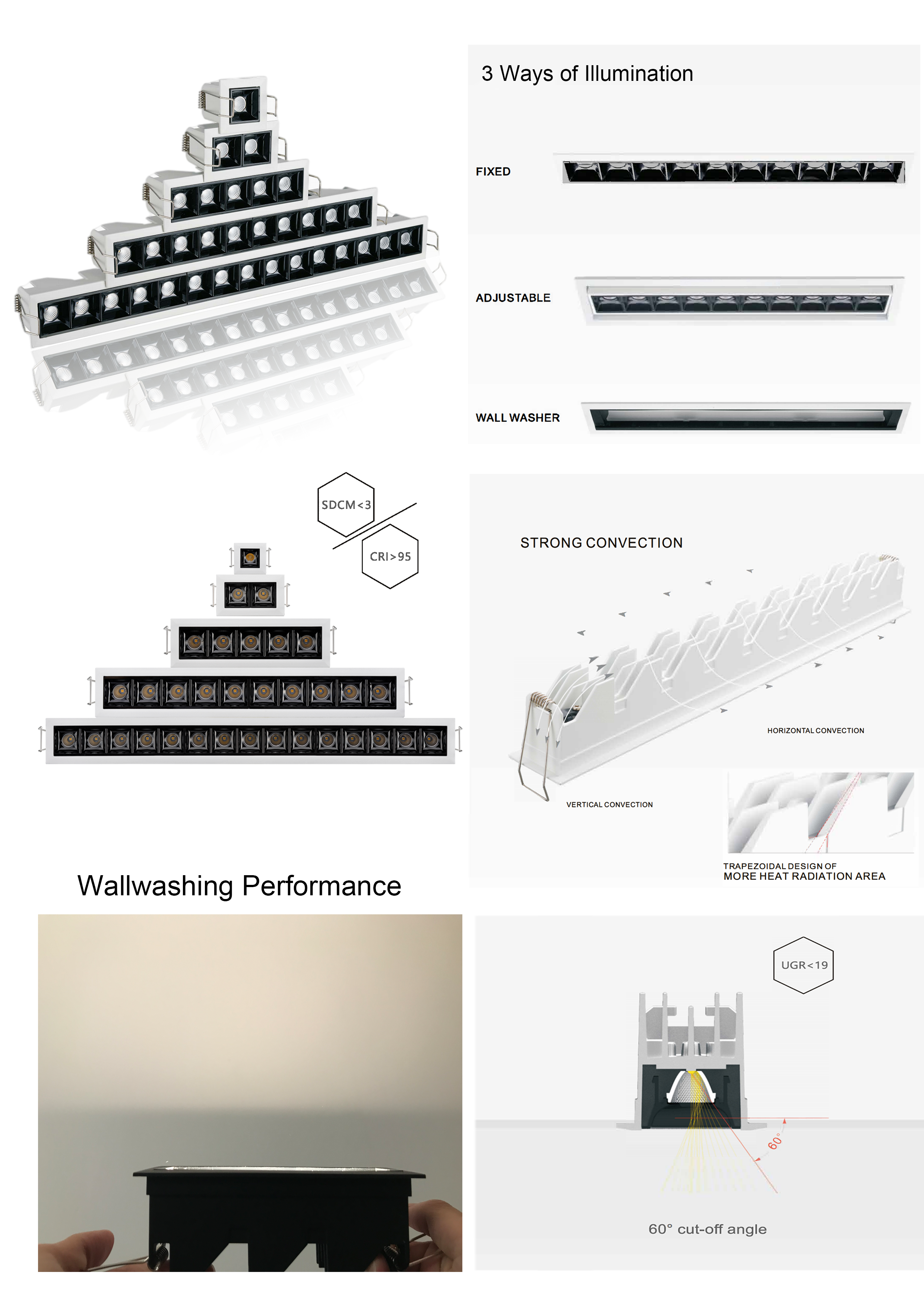

2-optic grille light Laser blade
*  LEDs of SDCM<3 produce high uniformity soft light.
*  Anti-glare design with UGR<10.
*  High color rendering index (CRI>95)
*  Linear shape of various sizes meet different demand.
*  Special design heat sink with excellent cooling system.
